General Information
Brand
Klein Tools
Part Number
VDV826-703
Product Type
Twisted Pair Connectors
Application
Voice and Data
Number of Pieces
50
Packaging
Retail
UPC
092644690938
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Translucent
Material
PVC Plastic; Gold Plated Contacts
Length
0.875'' (2.2 cm)
Width
0.094'' (0.2 cm)
Height
0.453'' (1.2 cm)
Weight
0.14 kg
0.30 lb
Details
Features
Klein exclusive Pass-Thru Connectors provide fast, reliable connector installations for data applications

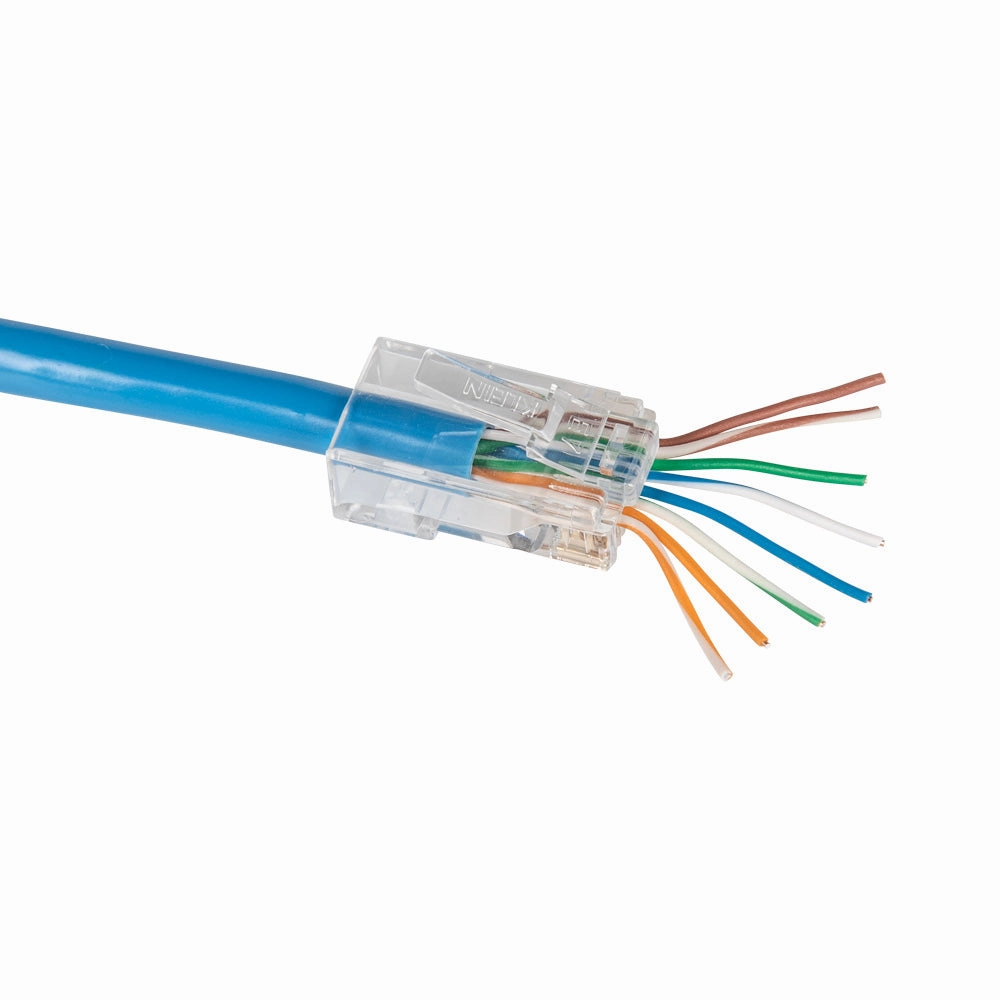

CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
50 -inch gold plating on all contact surfaces
Meets or Exceeds all PoE and PoE requirements for performance
Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
For use with Klein Tools Pass-Thru Modular Crimper VDV226-110

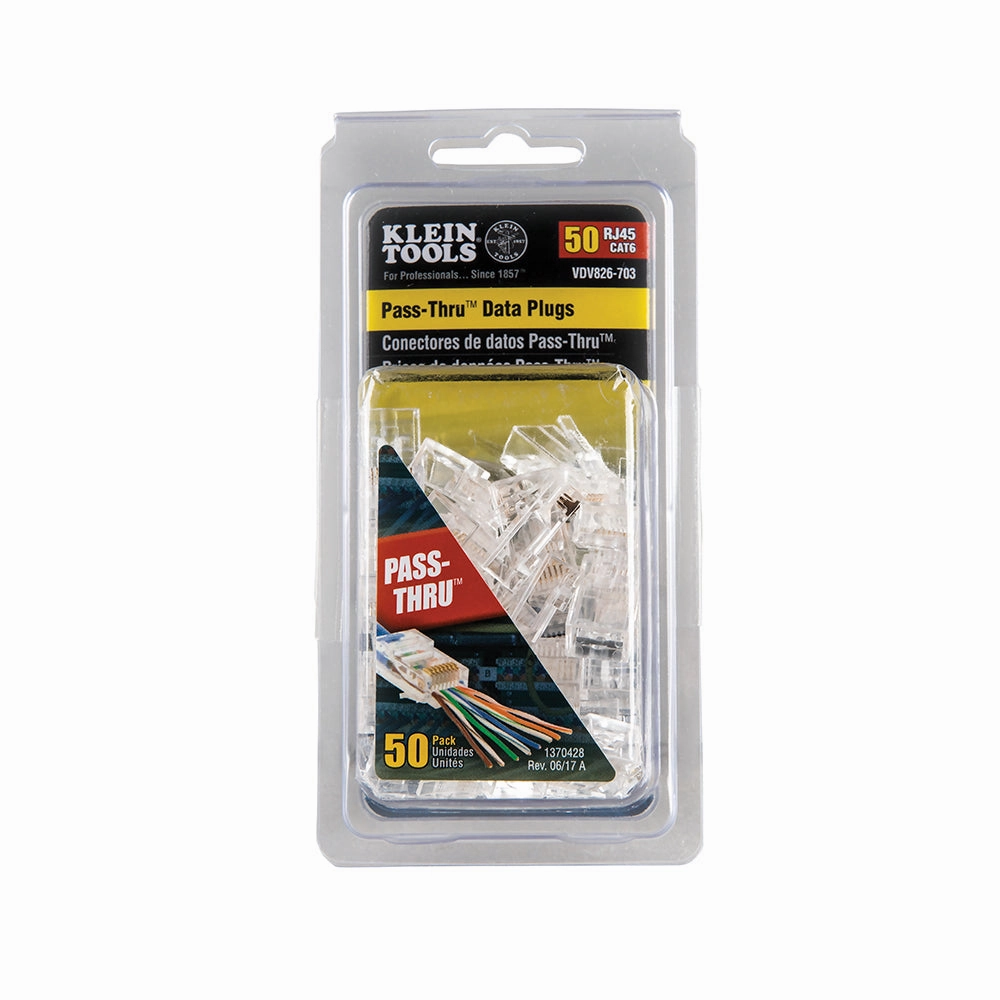

50-Pack

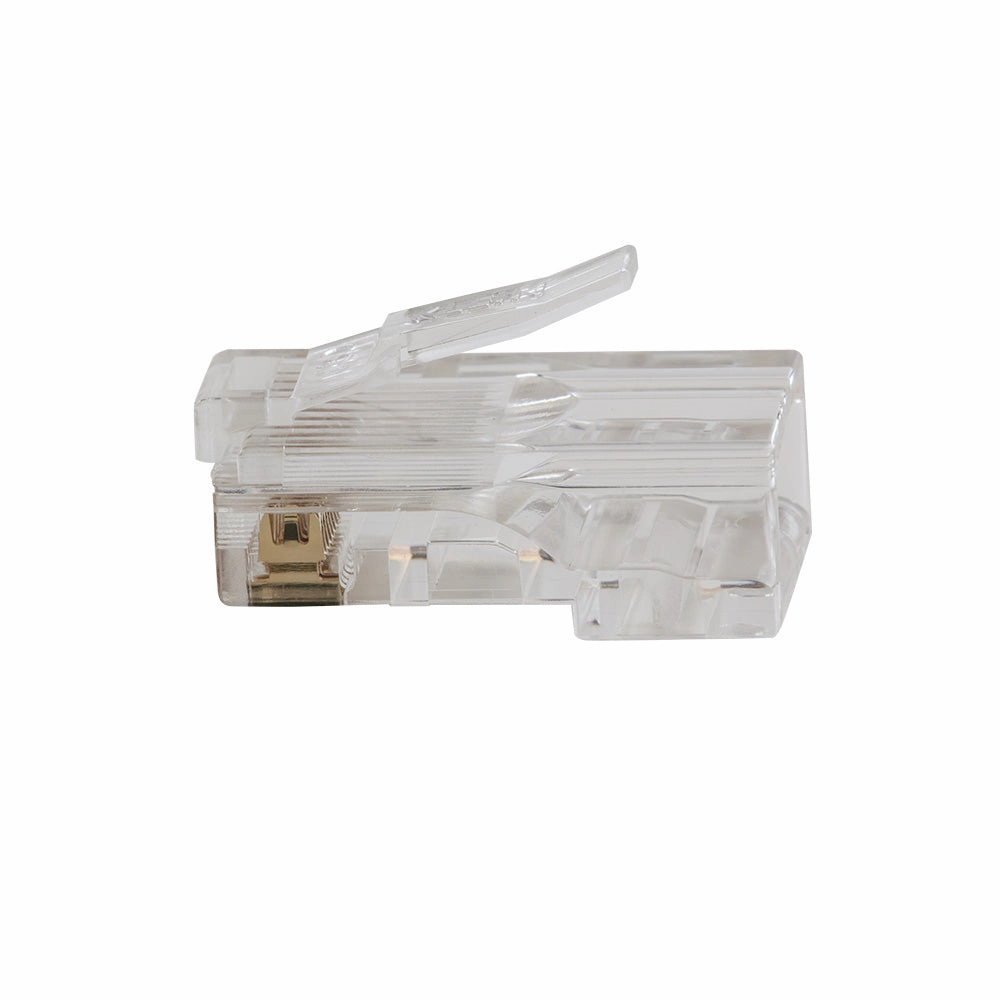

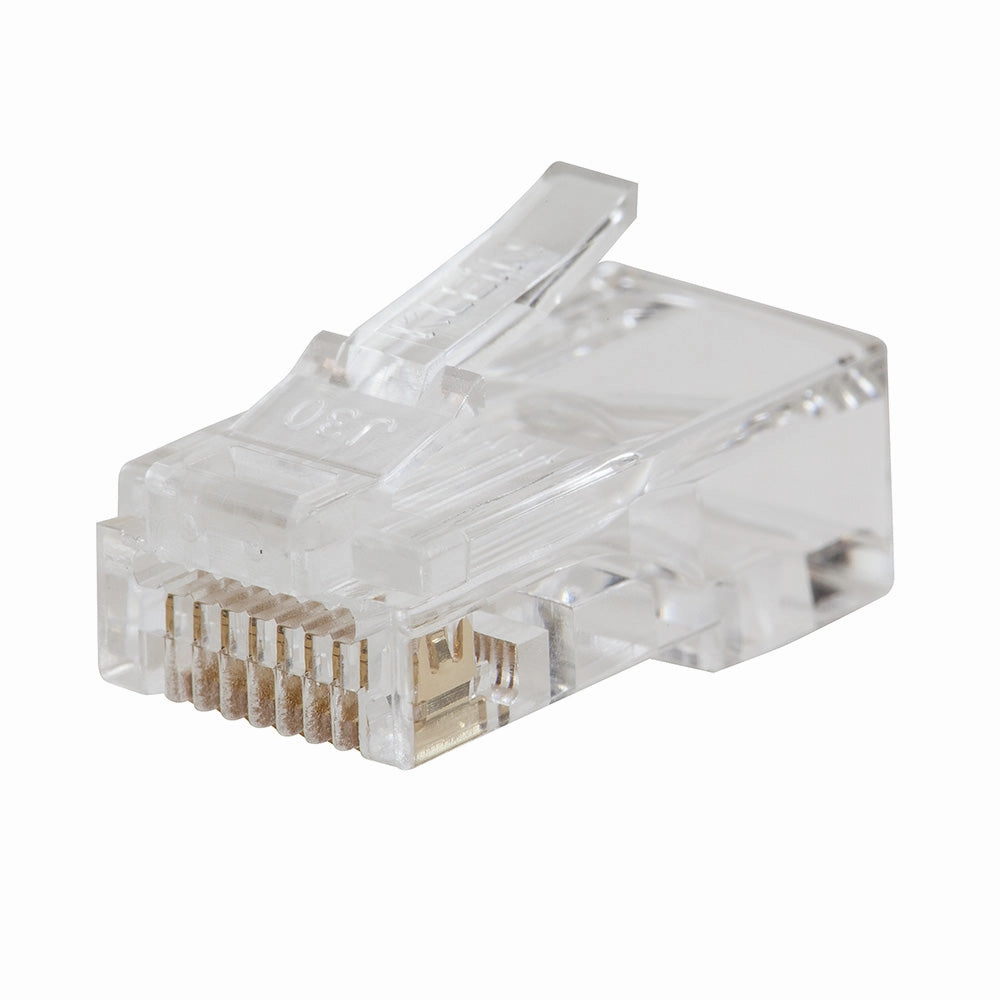

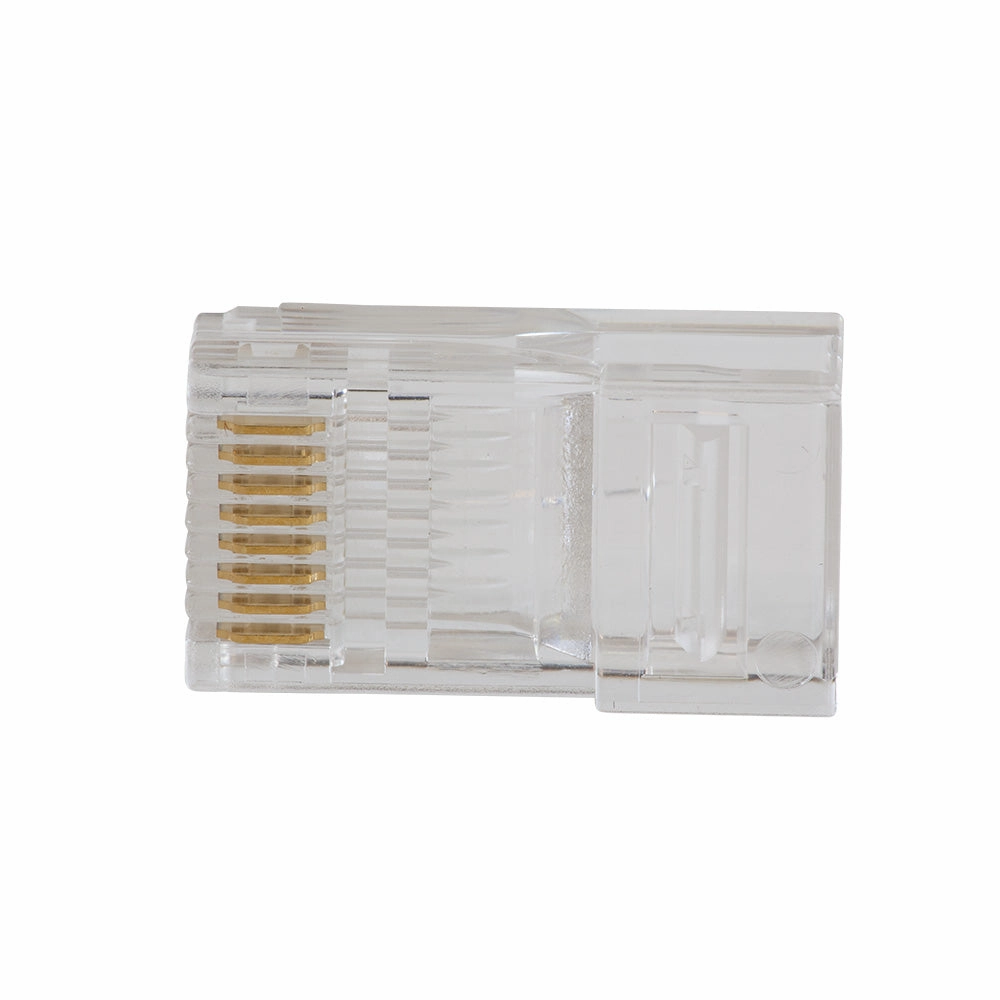

8 position, 8 contact Pass Through style data plug for solid or stranded cable
CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
50 -inch gold plating on all contact surfaces
Meets or Exceeds all PoE and PoE requirements for performance
Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
For use with Klein Tools Pass-Thru Modular Crimper VDV226-110
50-Pack
8 position, 8 contact Pass Through style data plug for solid or stranded cable
Cable Type
CAT6
Connection & Adapter Types
RJ45
