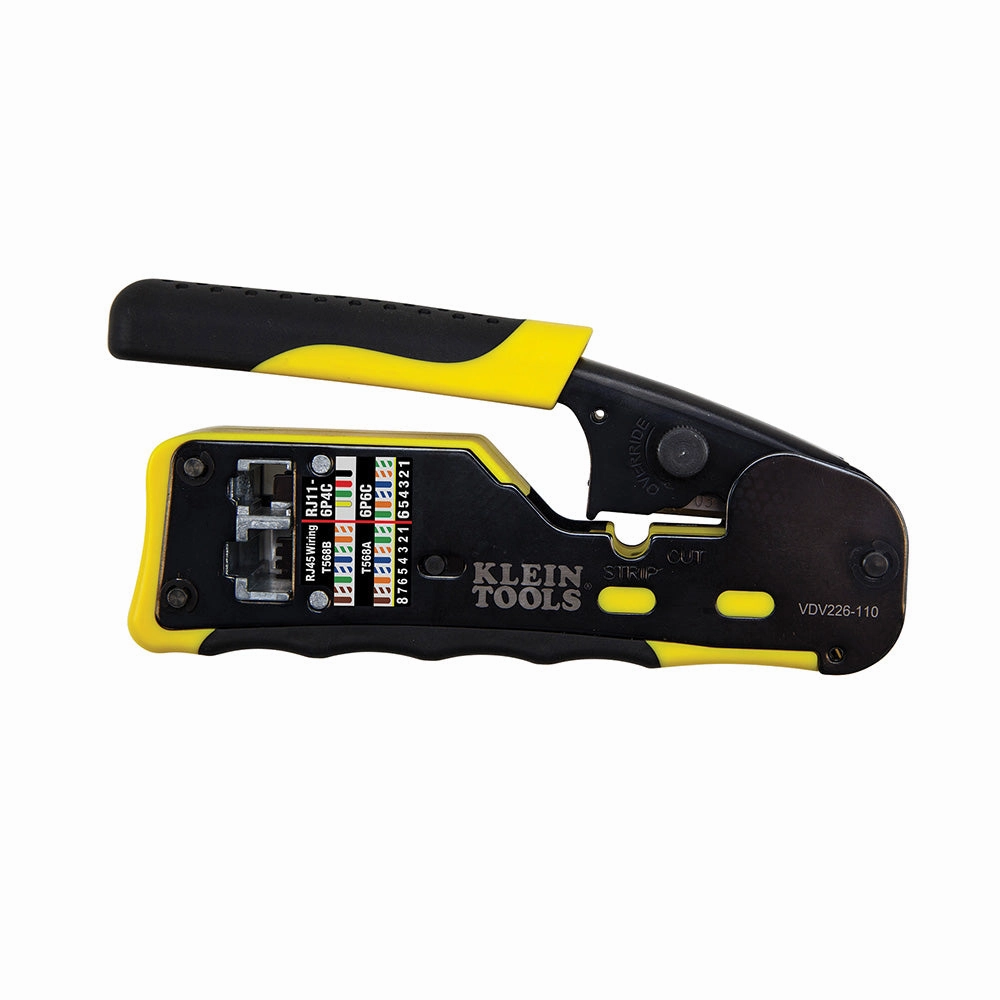

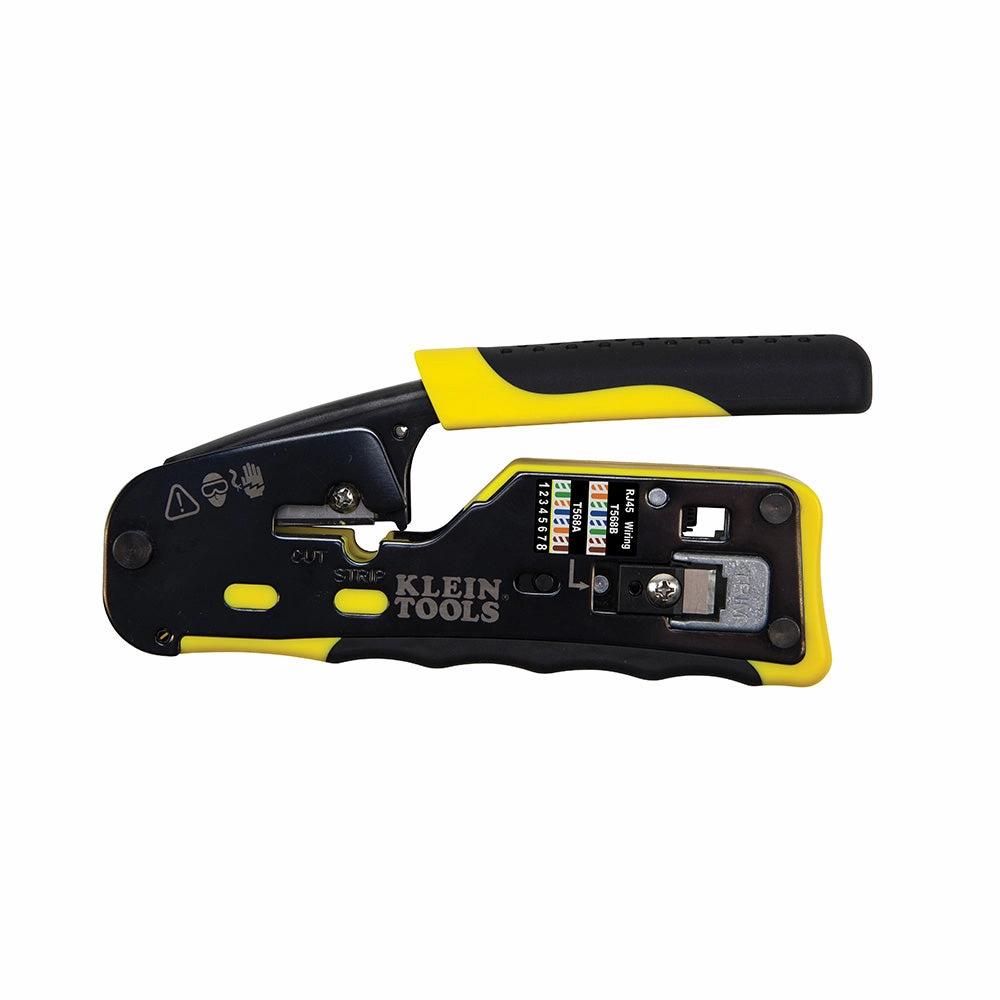

General Information
Brand
Klein Tools
Part Number
VDV226-110
Product Type
Crimper
Application
Cable Connection
Packaging
Retail
UPC
092644690945
California Residents
Proposition 65 Warning
Physical Characteristics
Length
6.094'' (154.8 mm)
Weight
0.41 kg
0.90 lb
Color
Yellow / Black
Material
Steel with Black Oxide
Details
Features

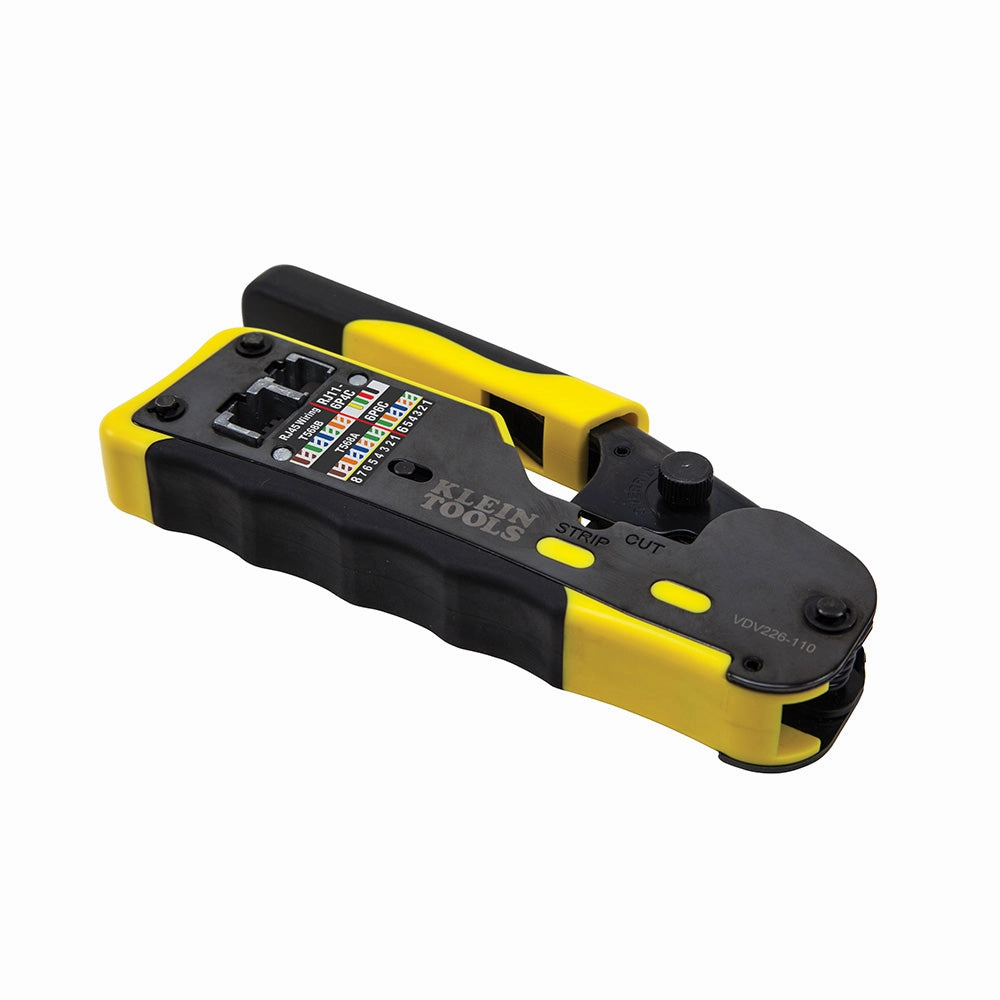

Fast, reliable modular crimp-connector install tool for voice and data applications with Pass-Thru RJ45 connector plugs

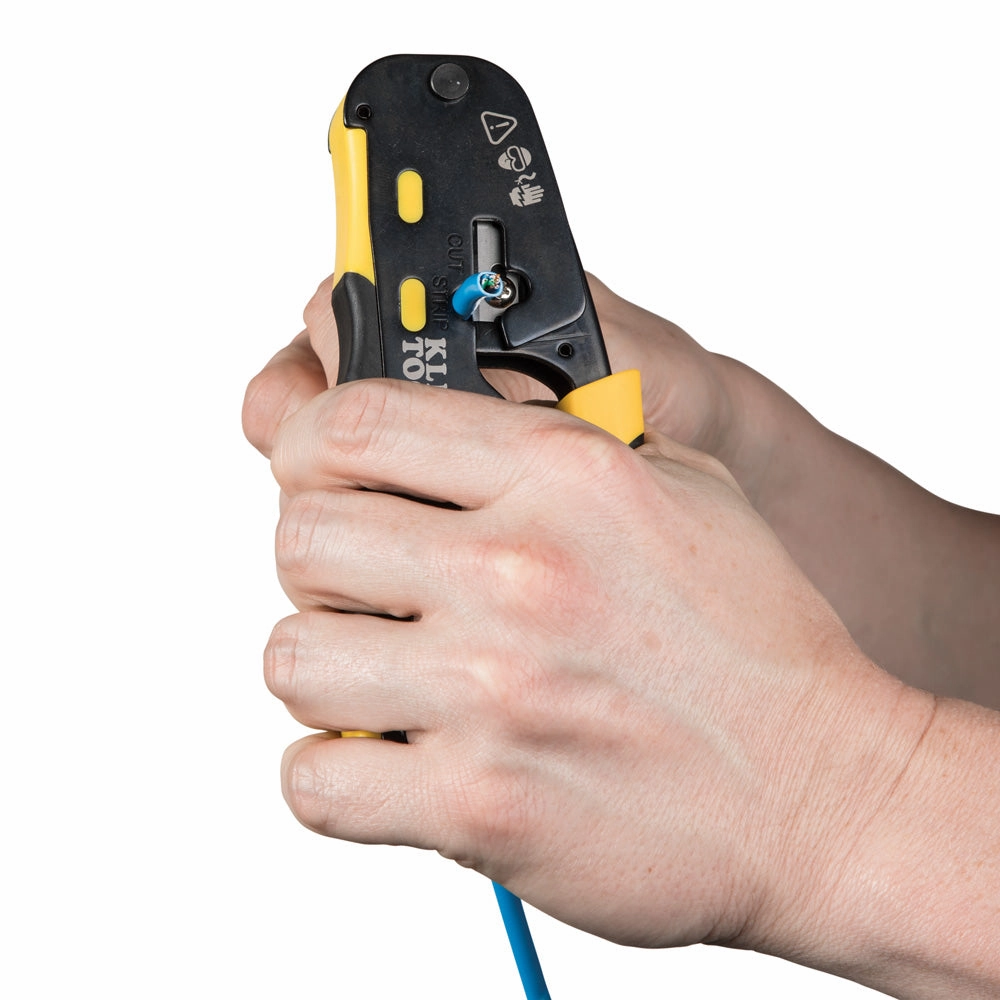

All-in-one tool cuts, strips and crimps paired-conductor data cables

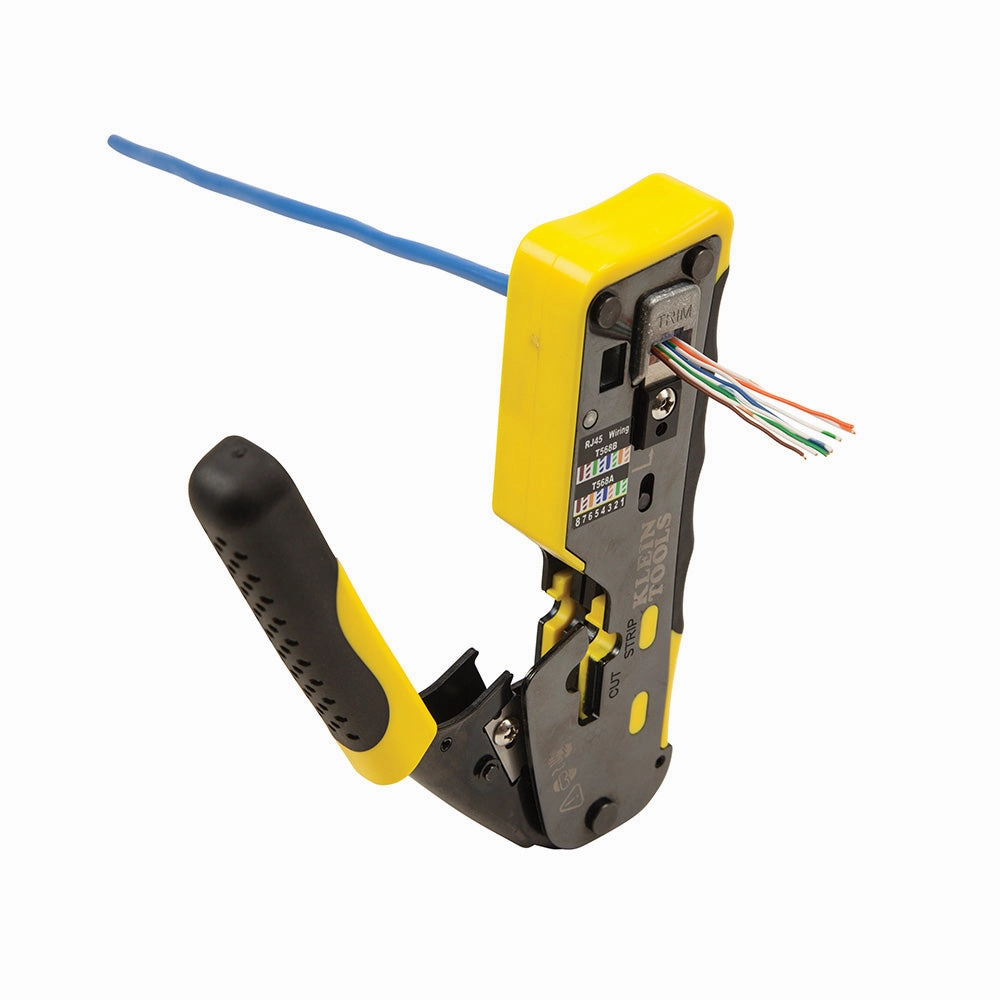

Trims flush to end face of connector eliminating unintended contact between conductors

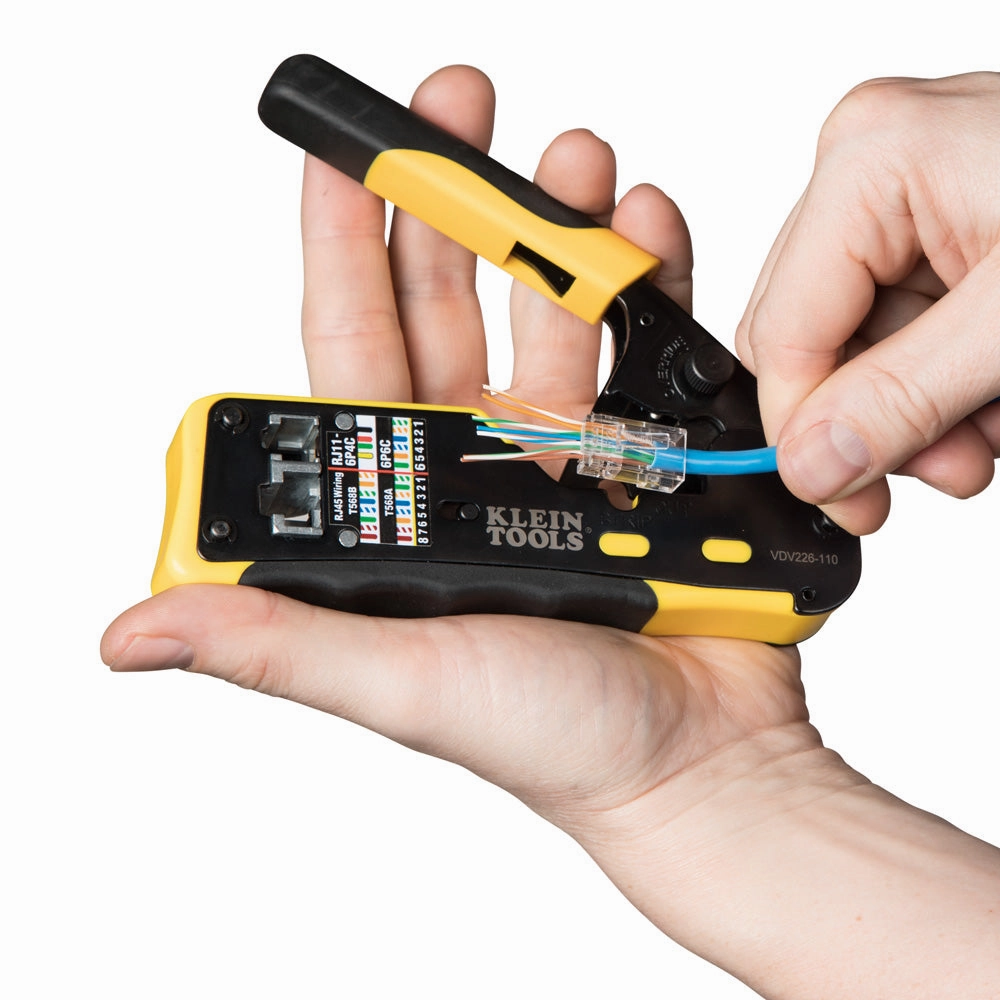

Crimps and trims Klein Tools RJ45 Pass-Thru Connectors
Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru)
Full-cycle ratchet mechanism ensures complete connector termination

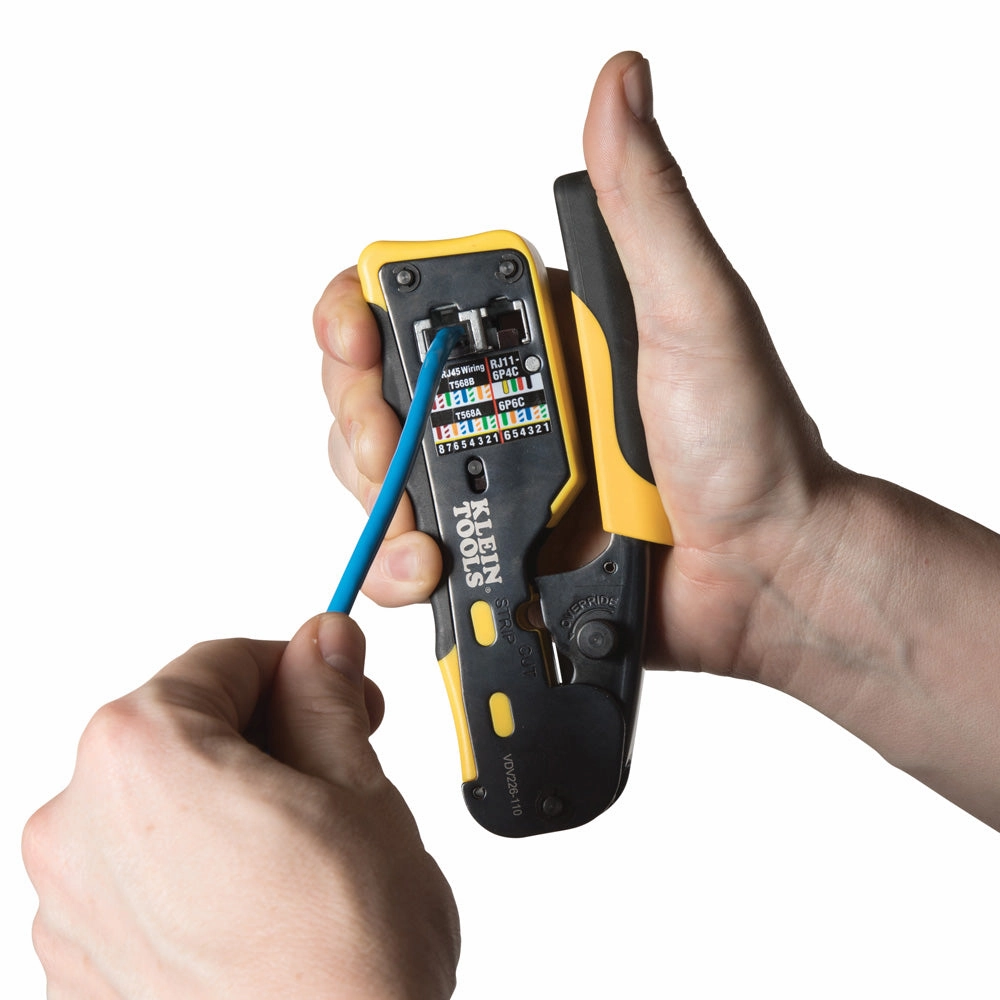

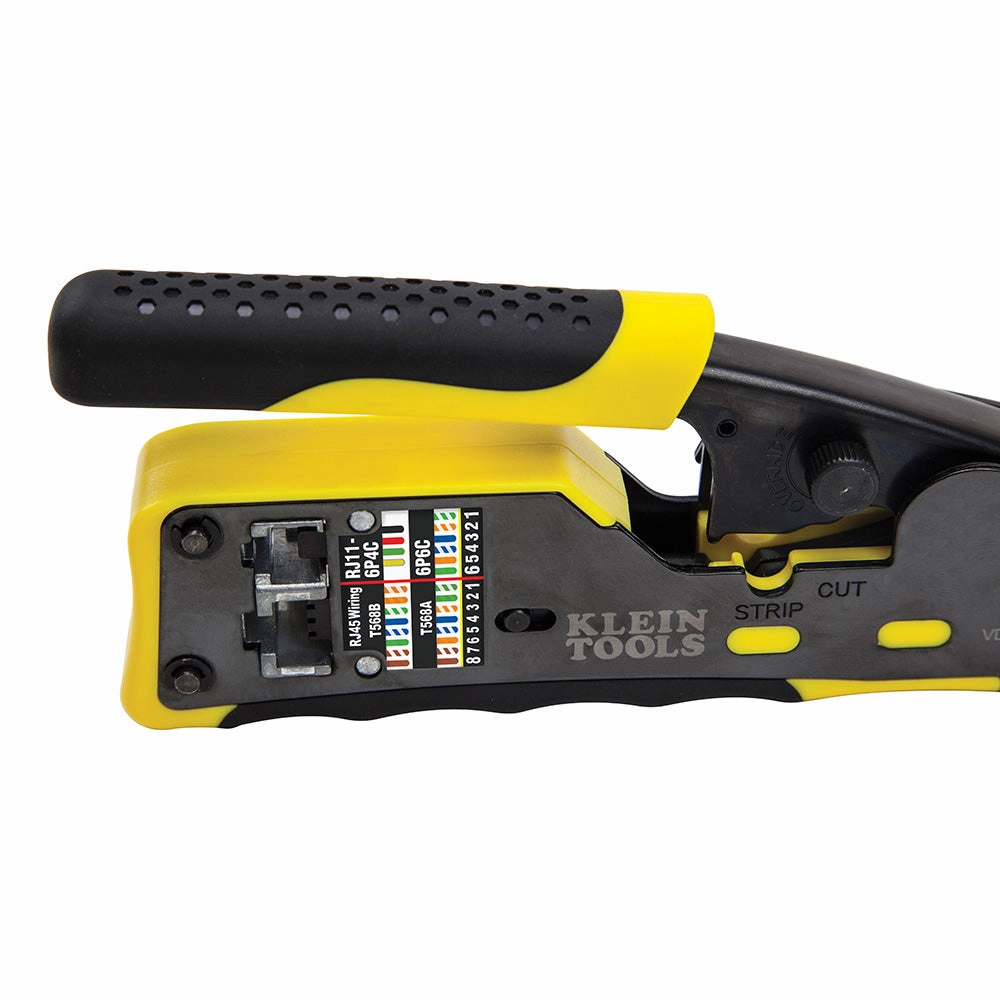

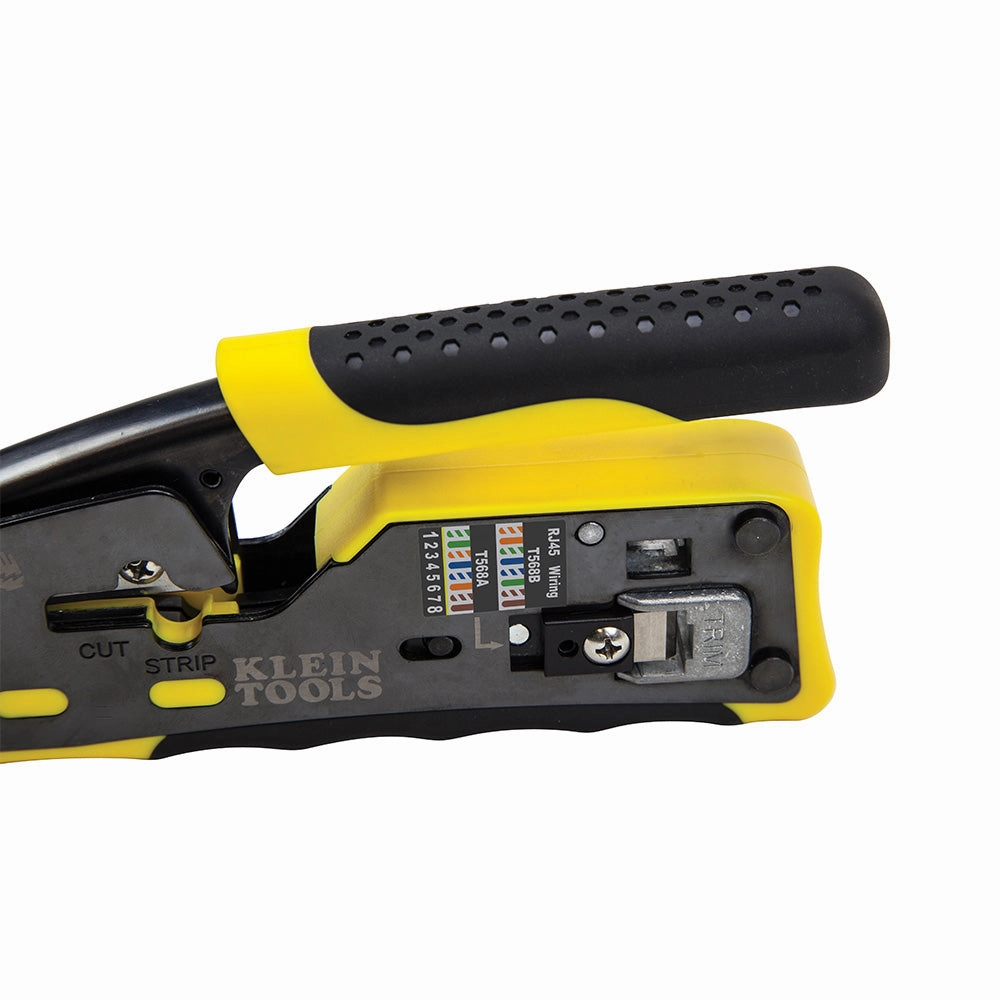

On-tool wiring guide helps minimize wiring errors
Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
Rubber grip for added comfort
Ratcheting locking mechanism
Use with Klein Tools Pass-Thru Connectors
Not for use with standard (non Pass-Thru) connectors
Replacement blade set available (VDV999-076)
