General Information
Brand
Klein Tools
Part Number
VDV226-107
Product Type
Crimper
Application
Cable Connection
Packaging
Retail
UPC
092644582097
California Residents
Proposition 65 Warning
Physical Characteristics
Length
5.25'' (13.3 cm)
Weight
0.32 kg
0.70 lb
Color
Black
Finish
Black-Oxide Finish
Material
Tool Steel
Details
Size
Cuts & Strips: STP/UTP Data Cable Flat-Satin Phone Cable 28-22 AWG
Cable Size: CAT3, CAT5e, CAT6
Connector Type:RJ11, RJ12 and RJ45 Standard
Position/Pair/Conductors: 6-Position, 2 Pair/4-Conductor; 6-Position, 3-Pair/6-Conductor; 8-Position, 4-Pair/8-Conductor
Cable Size: CAT3, CAT5e, CAT6
Connector Type:RJ11, RJ12 and RJ45 Standard
Position/Pair/Conductors: 6-Position, 2 Pair/4-Conductor; 6-Position, 3-Pair/6-Conductor; 8-Position, 4-Pair/8-Conductor
Pliers Type
Crimper
Features
All-in-one tool cuts, strips and crimps CAT6, CAT5e, CAT3 and flat-satin voice cables
Crimps RJ45 and RJ11/12 modular connectors
Full-cycle ratchet mechanism ensures complete connector termination
Compact, ergonomic design for natural, single-hand operation
Direct lateral crimp action provides more even, precise contact termination across all pins

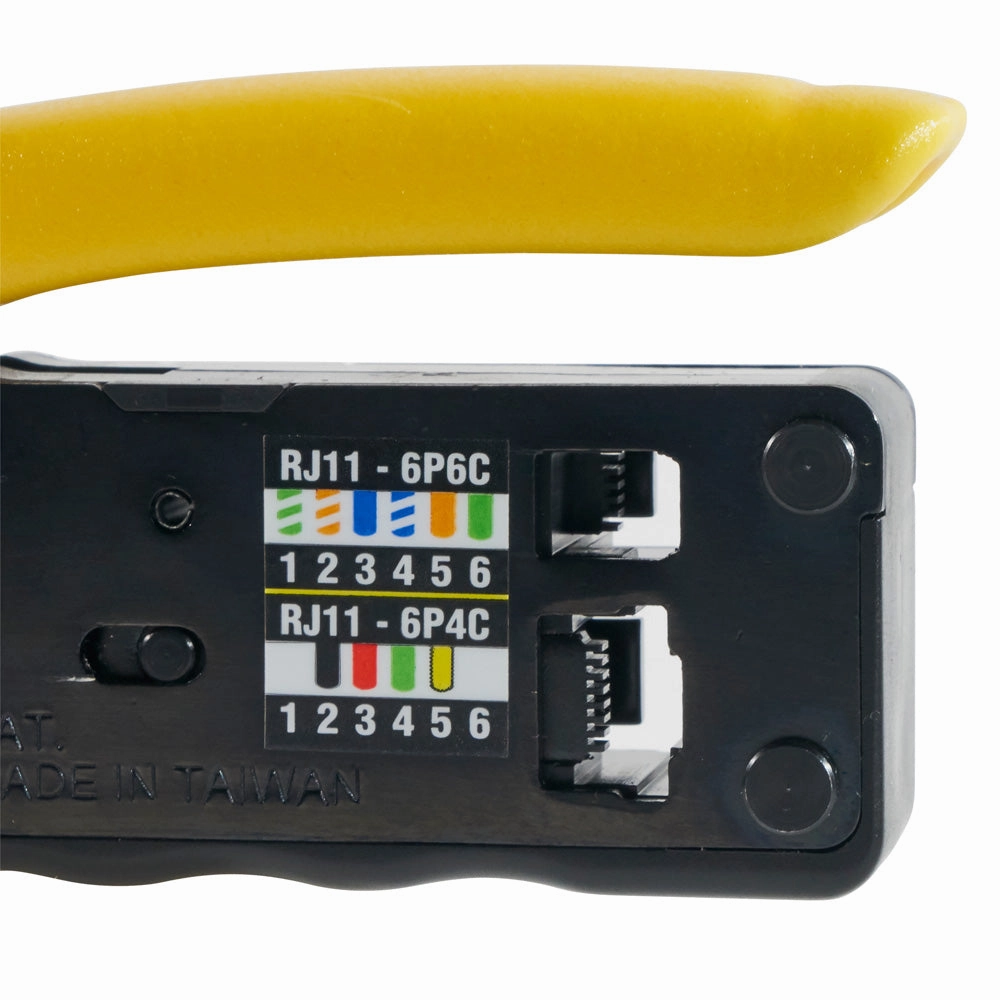

Quick reference connector wiring diagrams provided on the tool and downloadable to your mobile device
Not for use with AMP connectors
Crimps RJ45 and RJ11/12 modular connectors
Full-cycle ratchet mechanism ensures complete connector termination
Compact, ergonomic design for natural, single-hand operation
Direct lateral crimp action provides more even, precise contact termination across all pins
Quick reference connector wiring diagrams provided on the tool and downloadable to your mobile device
Not for use with AMP connectors
