General Information
Brand
Klein Tools
Part Number
TI290
Product Type
Thermal Imager
Application
View Hot and Cold Spots for Instant Troubleshooting
UPC
092644693625
Number of Pieces
4
What's Included

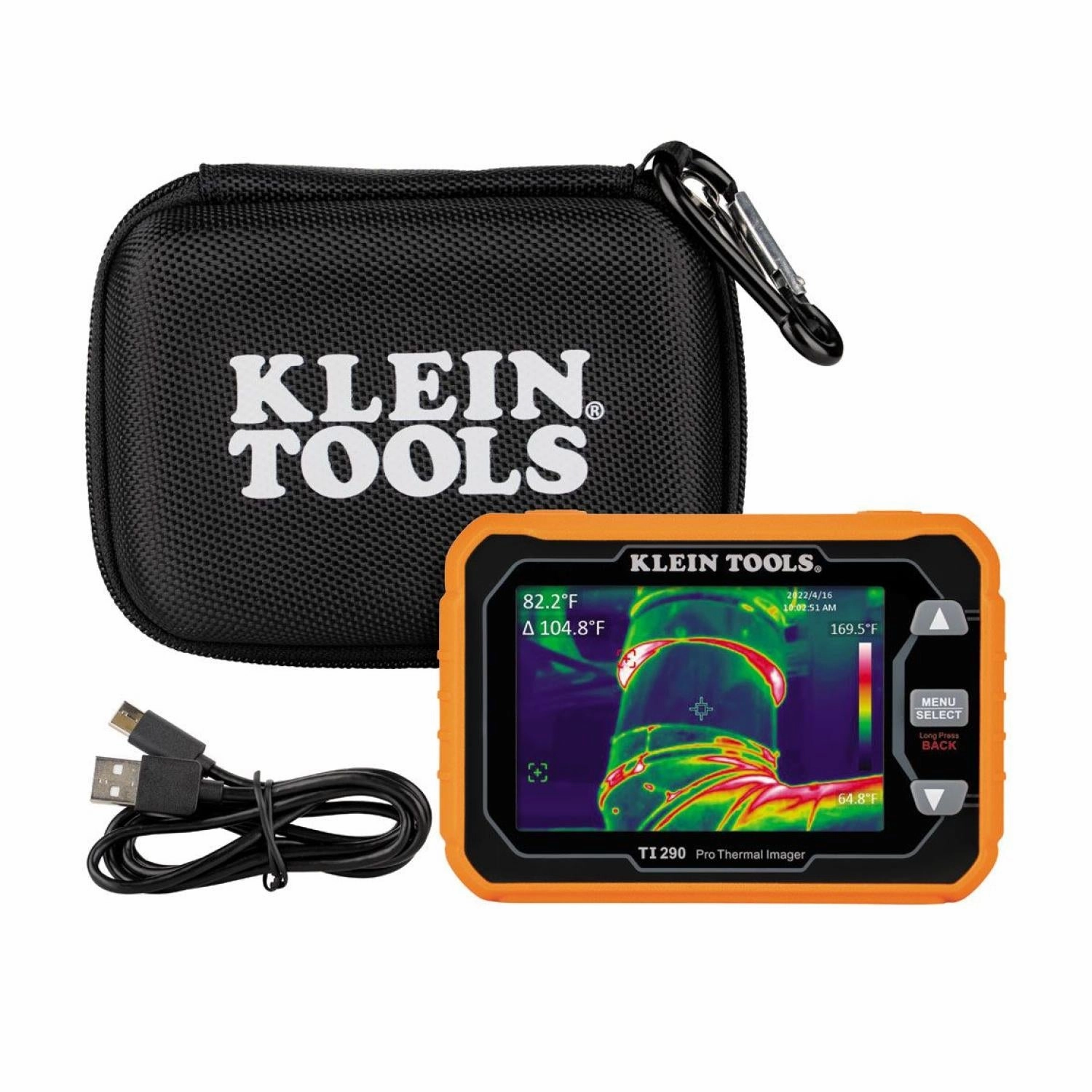

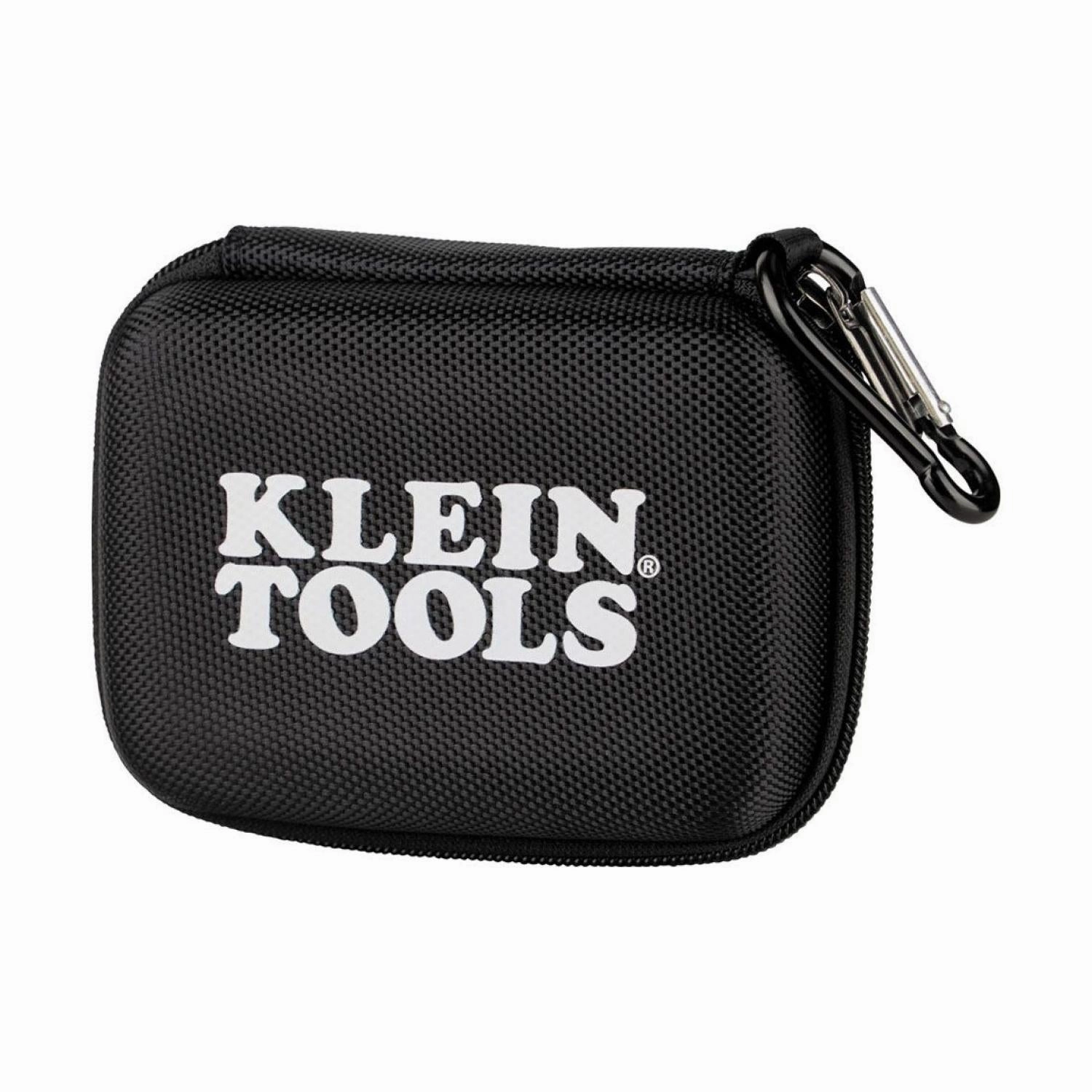

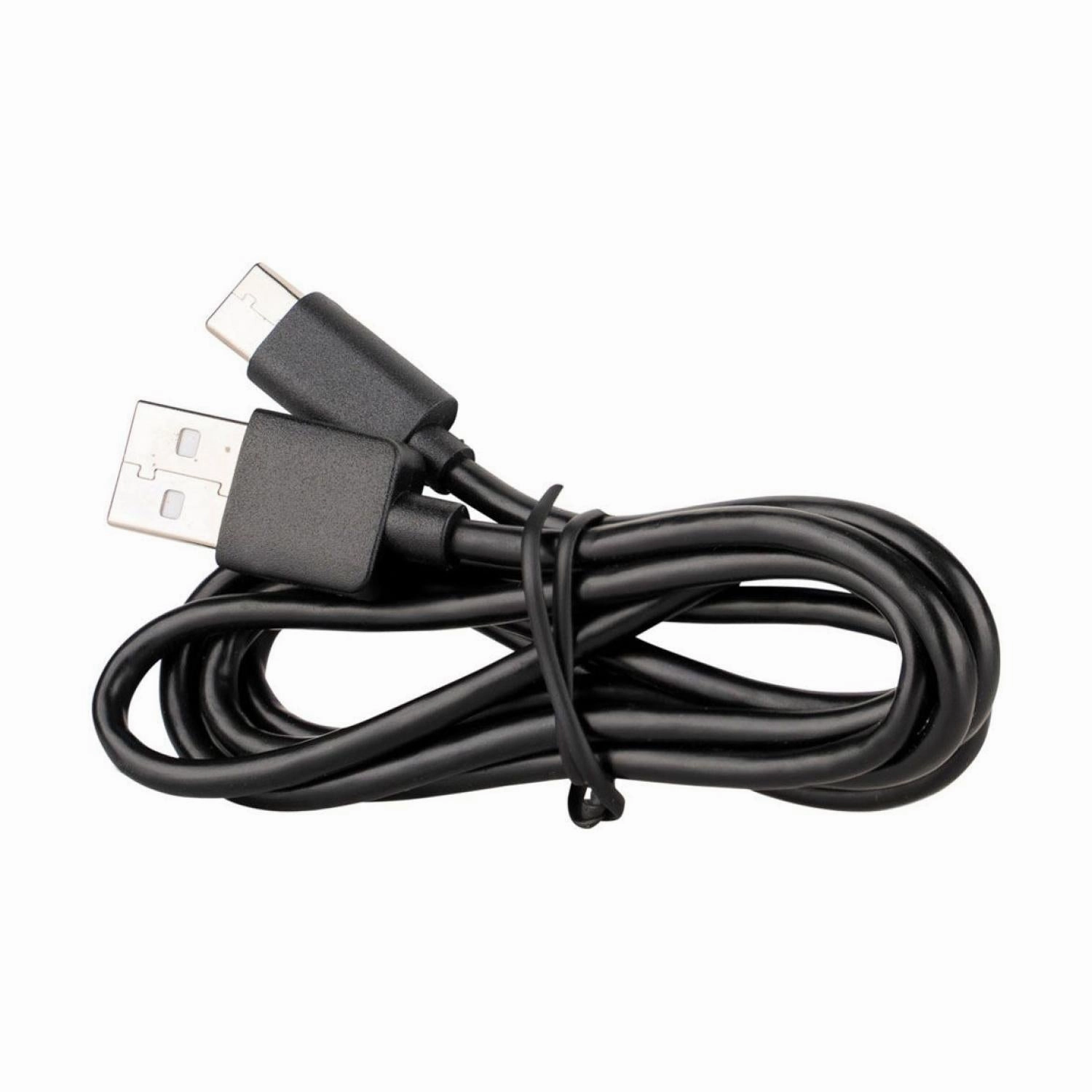

Rechargeable Thermal Imager, USB Charging Cable, Molded Soft-Storage Case with Carabiner, and Instructions
Packaging
Retail
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black / Metallic
Material
ABS and Electronic Components
Length
3.1'' (8 cm)
Width
1.06'' (3 cm)
Height
4.48'' (11.4 cm)
Weight
0.21 kg
0.47 lb
Details
Measurement Standard
CE and UKCA
Features
Sensor Type: VOx Microbolometer
Display Resolution: 49,152 Pixels
Thermal Sensitivity: <50 mK
Spectral Range: 8 to 14m
Accuracy: 2C (3.6F) or 2%, Whichever is Greater
Field of View:55.6 /- 2.8
Emissivity: 0.01 to 0.99
Color Palettes: Ironbow, Rainbow, Grayscale
Photo Capture: Yes and Wi-Fi Data Transfer
Maximum Frames per Second: <9 Hz
Memory:10,000 Images
App is available for free in Google Play store and in the App Store
Display Resolution: 49,152 Pixels
Thermal Sensitivity: <50 mK
Spectral Range: 8 to 14m
Accuracy: 2C (3.6F) or 2%, Whichever is Greater
Field of View:55.6 /- 2.8
Emissivity: 0.01 to 0.99
Color Palettes: Ironbow, Rainbow, Grayscale
Photo Capture: Yes and Wi-Fi Data Transfer
Maximum Frames per Second: <9 Hz
Memory:10,000 Images
App is available for free in Google Play store and in the App Store
Batteries
Lithium-Ion
Battery Life
5 yr
Display Type
3.5'' (8.9 cm) TFT LCD
Temperature Range
-4 to 752F (-20 to 400C)
