General Information
Brand
Klein Tools
Part Number
NCVT-6
Product Type
Electric Tester
Application
Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter
What's Included
2 x Alkaline 1.5V AAA Batteries
Packaging
Retail
UPC
092644692253
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Yellow / Black
Material
ABS Plastic
Length
6.45'' (16.4 cm)
Width
1.32'' (3.4 cm)
Height
1.21'' (3.1 cm)
Weight
0.07 kg
0.16 lb
Details
Measurement Standard
CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
Features

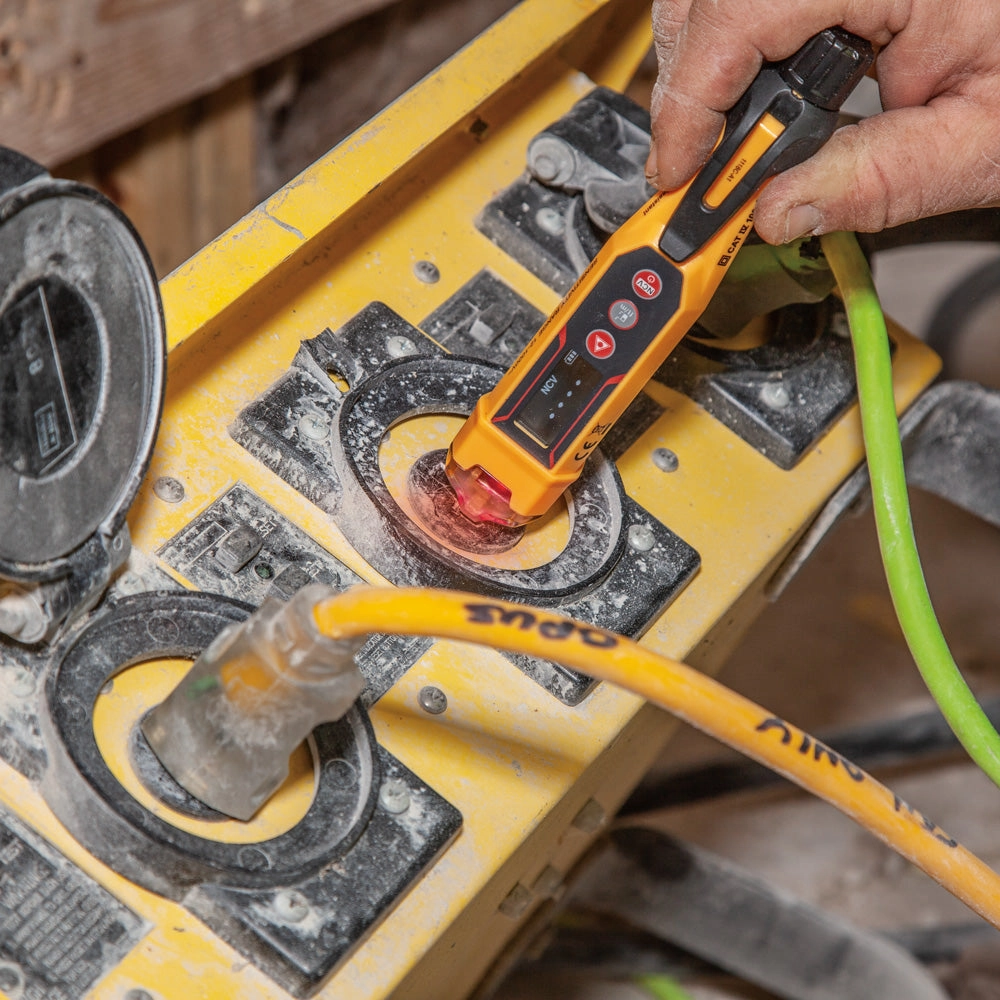

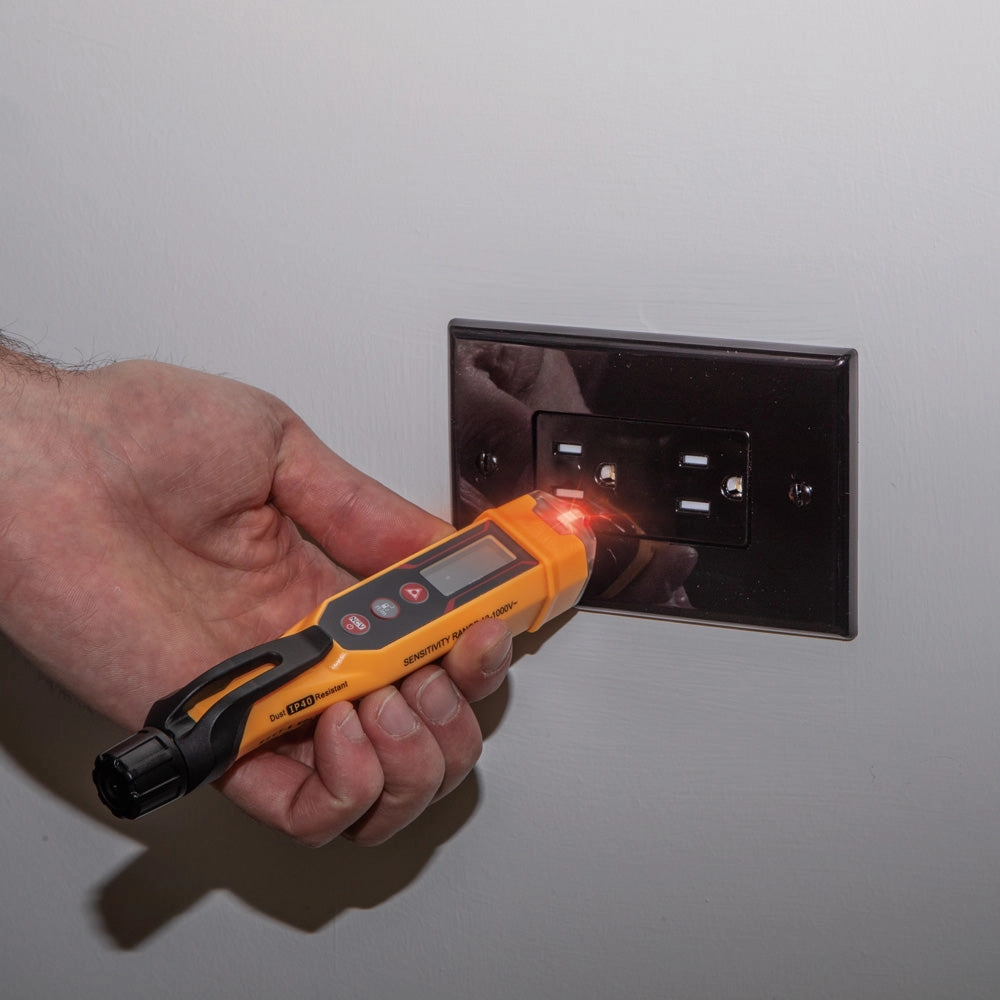

Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control, and irrigation systems
Detects AC voltage from 12 to 1000V with visual and audible indicators

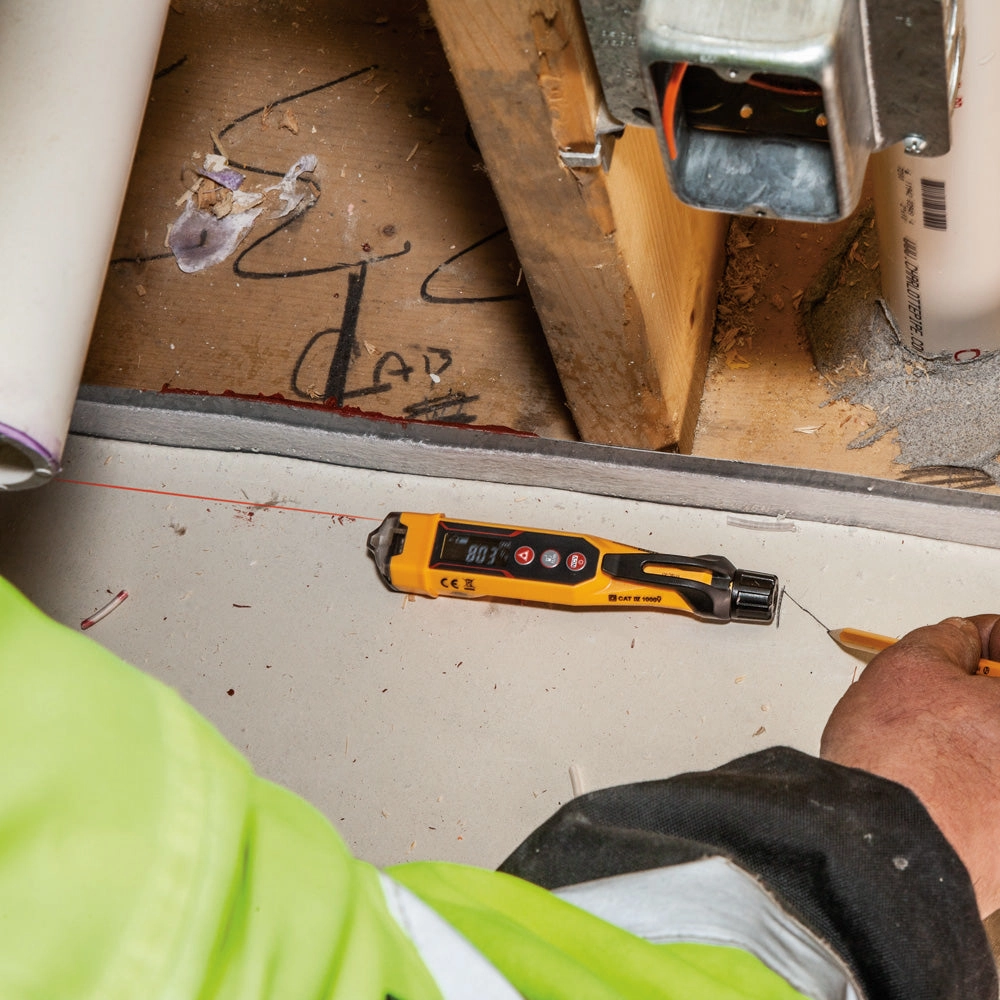

Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with fractions

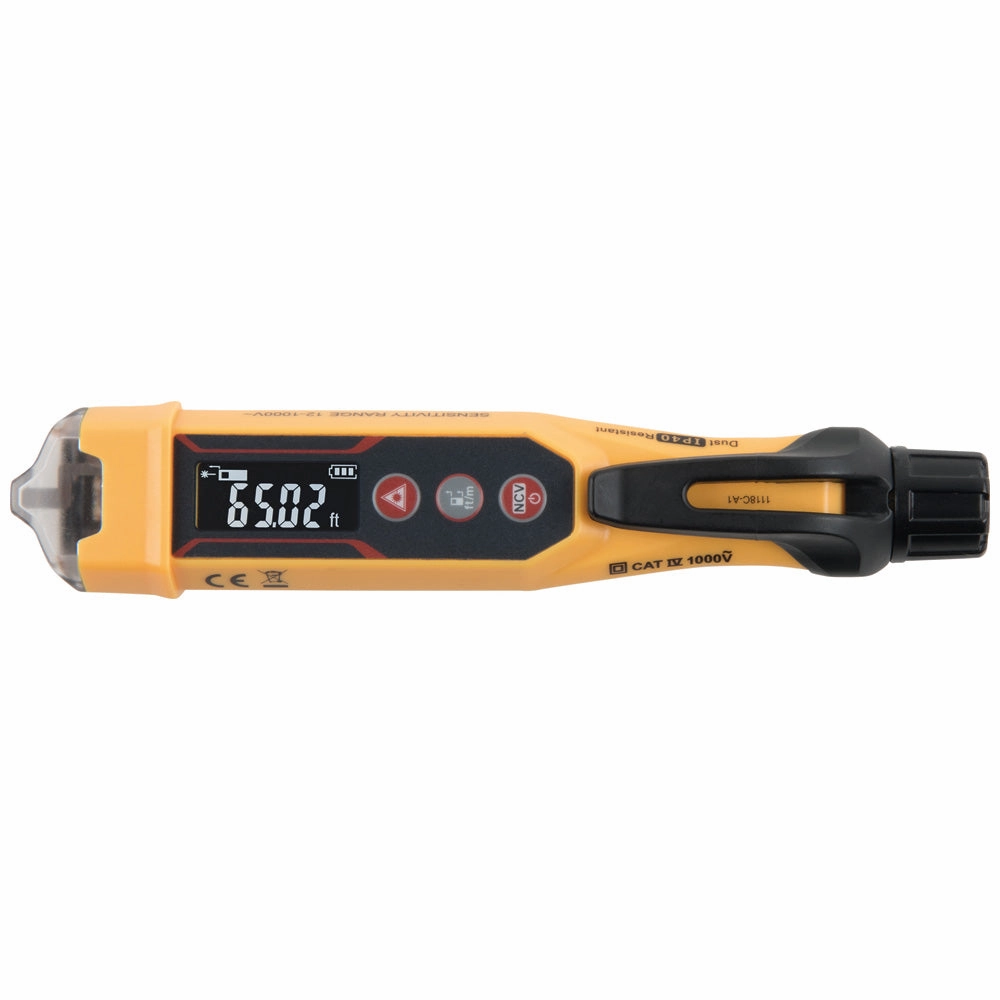

High-visibility reverse contrast display for better viewing in low light conditions
Laser Class II, 630 to 670nm, Max. Power <1mW
Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
Built to withstand a 6.6-Foot (2 m) drop
Auto Power-Off conserves and extends battery life
Screw-thread battery cap
Lightweight tool with pocket clip for easy everyday carrying and storage
CAT IV 1000V safety rating
Ingress Protection IP40 Dust Resistant
Detects AC voltage from 12 to 1000V with visual and audible indicators
Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with fractions
High-visibility reverse contrast display for better viewing in low light conditions
Laser Class II, 630 to 670nm, Max. Power <1mW
Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
Built to withstand a 6.6-Foot (2 m) drop
Auto Power-Off conserves and extends battery life
Screw-thread battery cap
Lightweight tool with pocket clip for easy everyday carrying and storage
CAT IV 1000V safety rating
Ingress Protection IP40 Dust Resistant
Voltage
12-1000 VAC
Frequency
50 - 500 Hz
Batteries
2 x AAA
