General Information
Brand
Klein Tools
Part Number
9417R
Product Type
Pliers and Wire Stripper Set
Application
For Work Near Energized Sources
Number of Pieces
4
What's Included

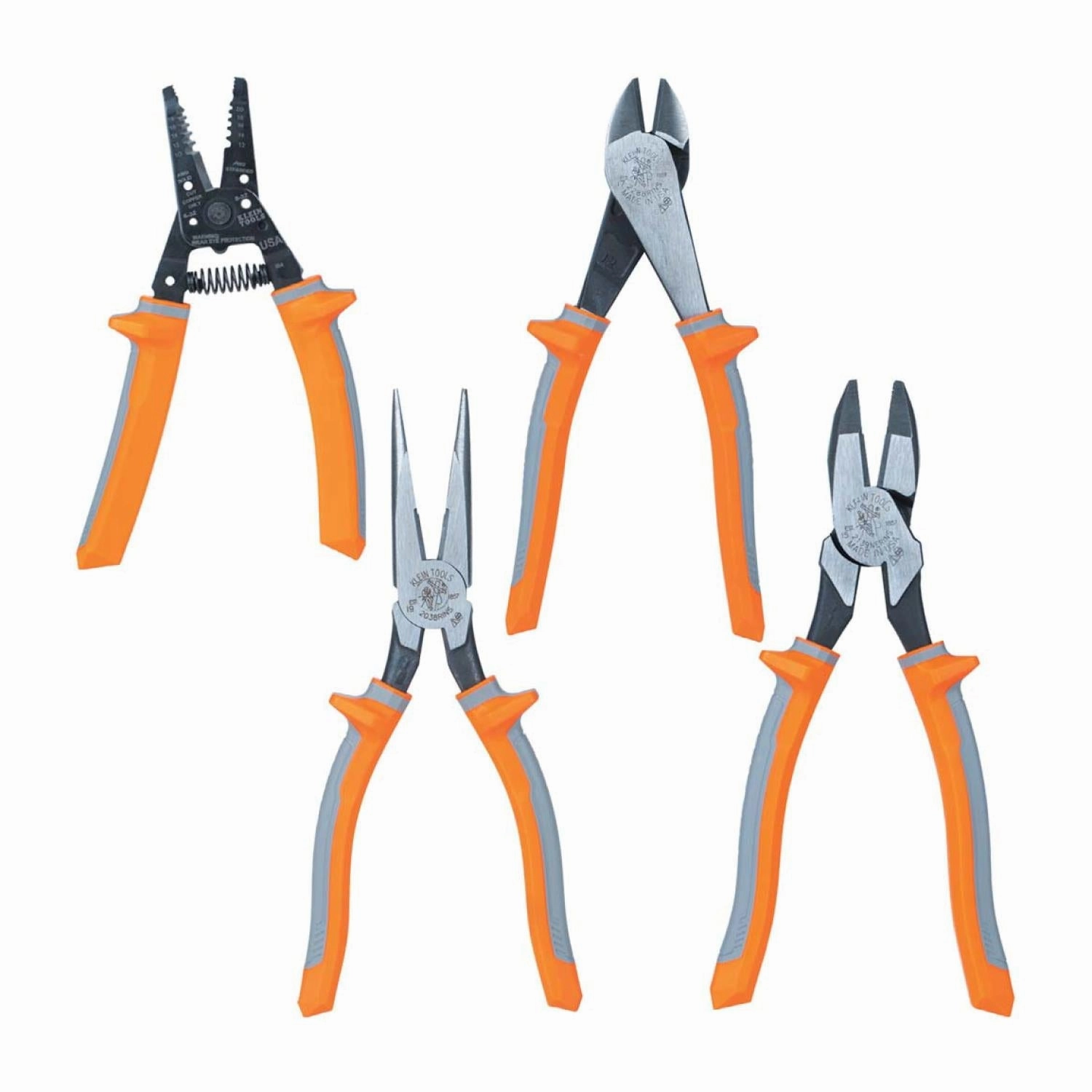

2139NERINS Insulated Pliers, Side Cutters, 9-Inch; 2288RINS Diagonal Cutting Pliers, Insulated, High Leverage, 8-Inch; 2038RINS Pliers, Long Nose Side-Cutters, Insulated, 8-Inch; 11055RINS Insulated Klein-Kurve Wire Stripper and Cutter
Packaging
Retail
Country of Origin
United States
UPC
092644800757
California Residents
Physical Characteristics
Length
10.25'' (26 cm)
Width
2.25'' (5.7 cm)
Height
13.75'' (34.9 cm)
Weight
1.42 kg
3.12 lb
Color
Orange / Light Gray
Finish
2-Layer Insulation
Material
Jaws: Induction Hardened Steel
Handle: High-Dielectric Plastic Cushion Grip
Handle: High-Dielectric Plastic Cushion Grip
Durability
ASTM F1505-16 and IEC 60900
Details
Size

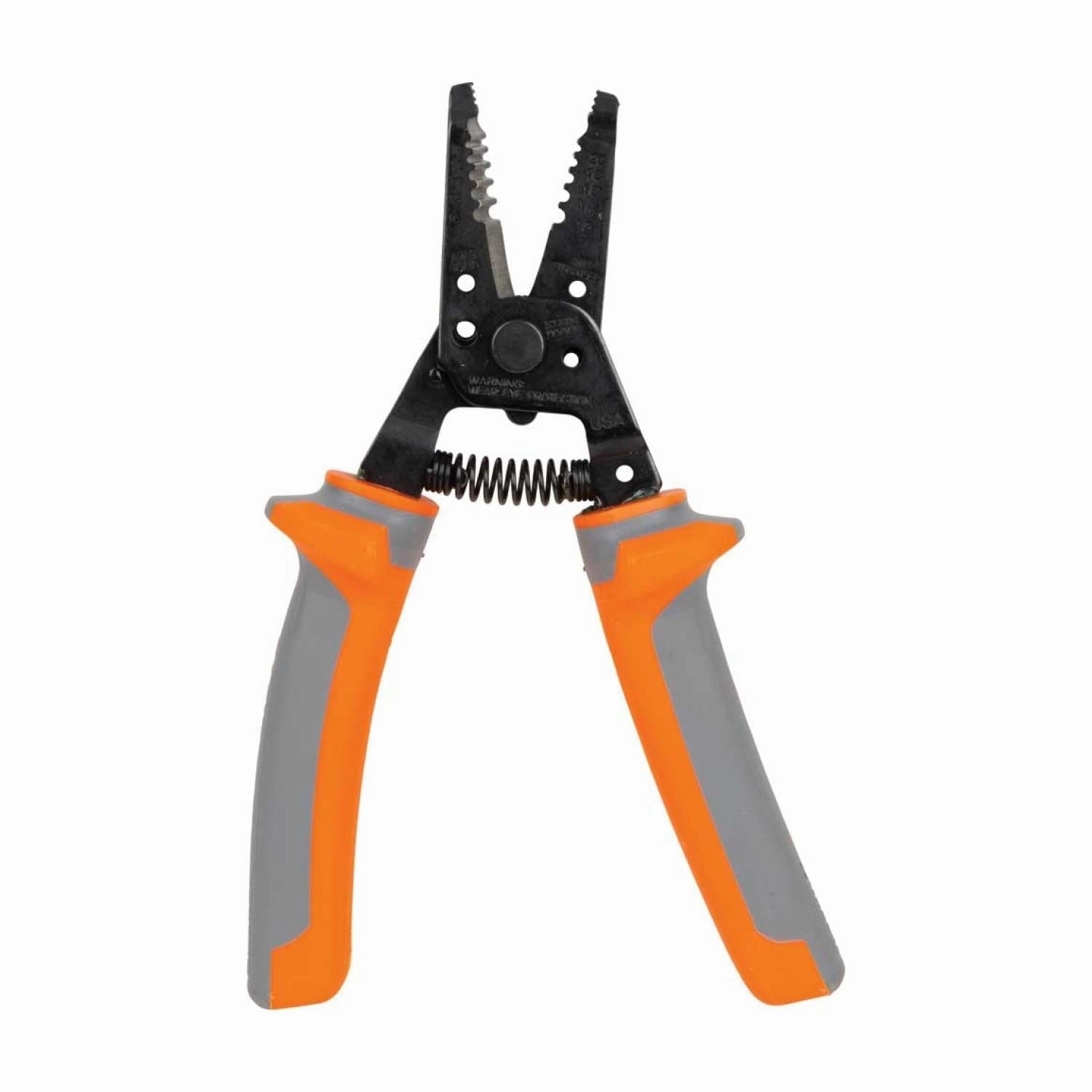

11055RINS Wire Stripper:
OAL: 7.7'' (19.5 cm)
Jaw Capacity: 0.75'' (1.9 cm)
Jaw Size: 0.25'' (0.6 cm)
Strips and Cuts: 10-18 AWG Solid, 12-20 AWG Stranded
Screw Shearing: Yes; 6-32, 8-32
Wire Gauge: 10-18 AWG Solid; 12-20 AWG Stranded

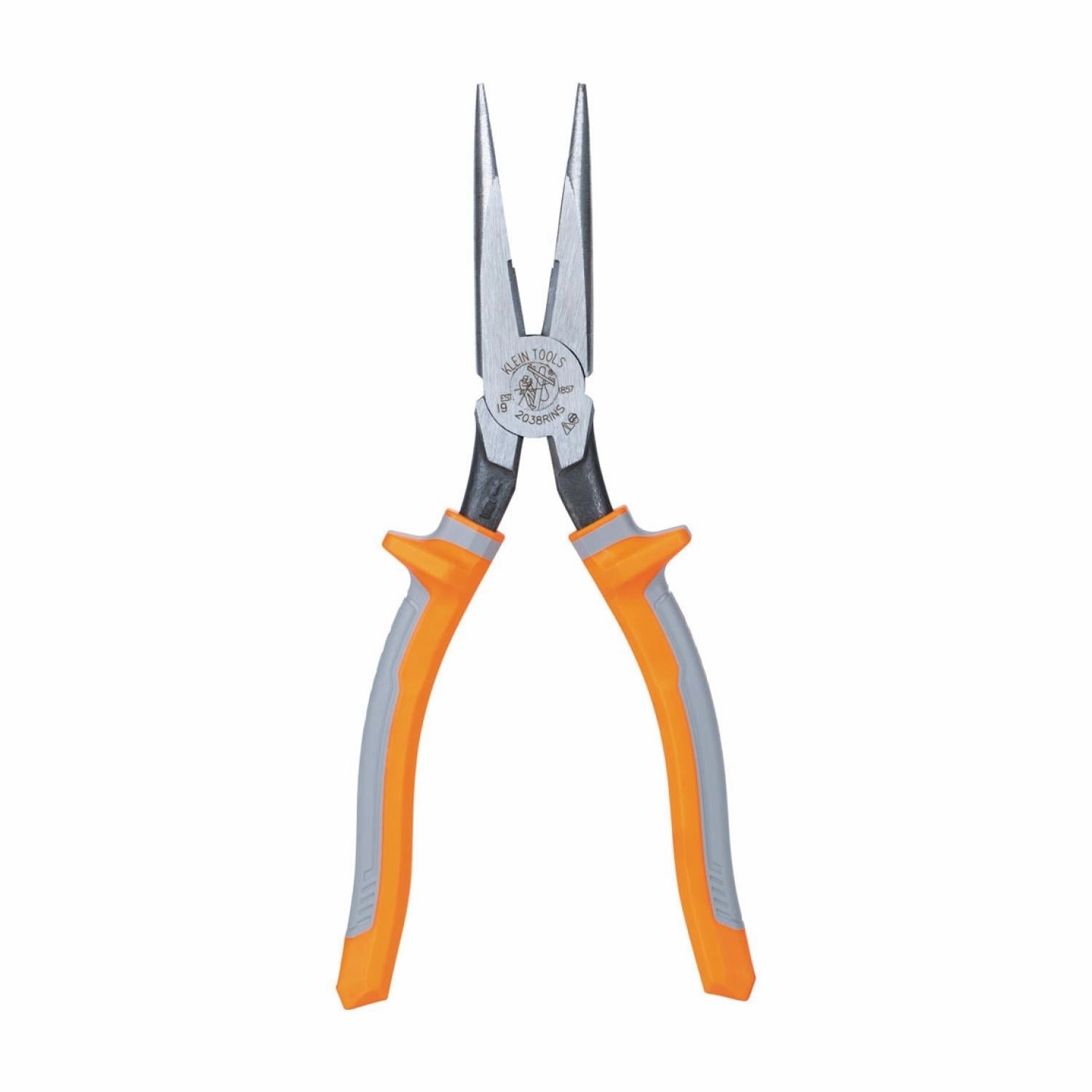

2038RINS Long Nose Side-Cutters:
OAL: 8.63'' (21.9 cm)
Point Diameter: 0.125'' (0.32 cm)
Jaw Capacity: 2.36'' (6 cm)
Jaw Thickness: 0.5'' (1.3 cm)
Jaw Length: 2.32'' (5.9 cm)
Jaw Width: 1.02'' (2.6 cm)

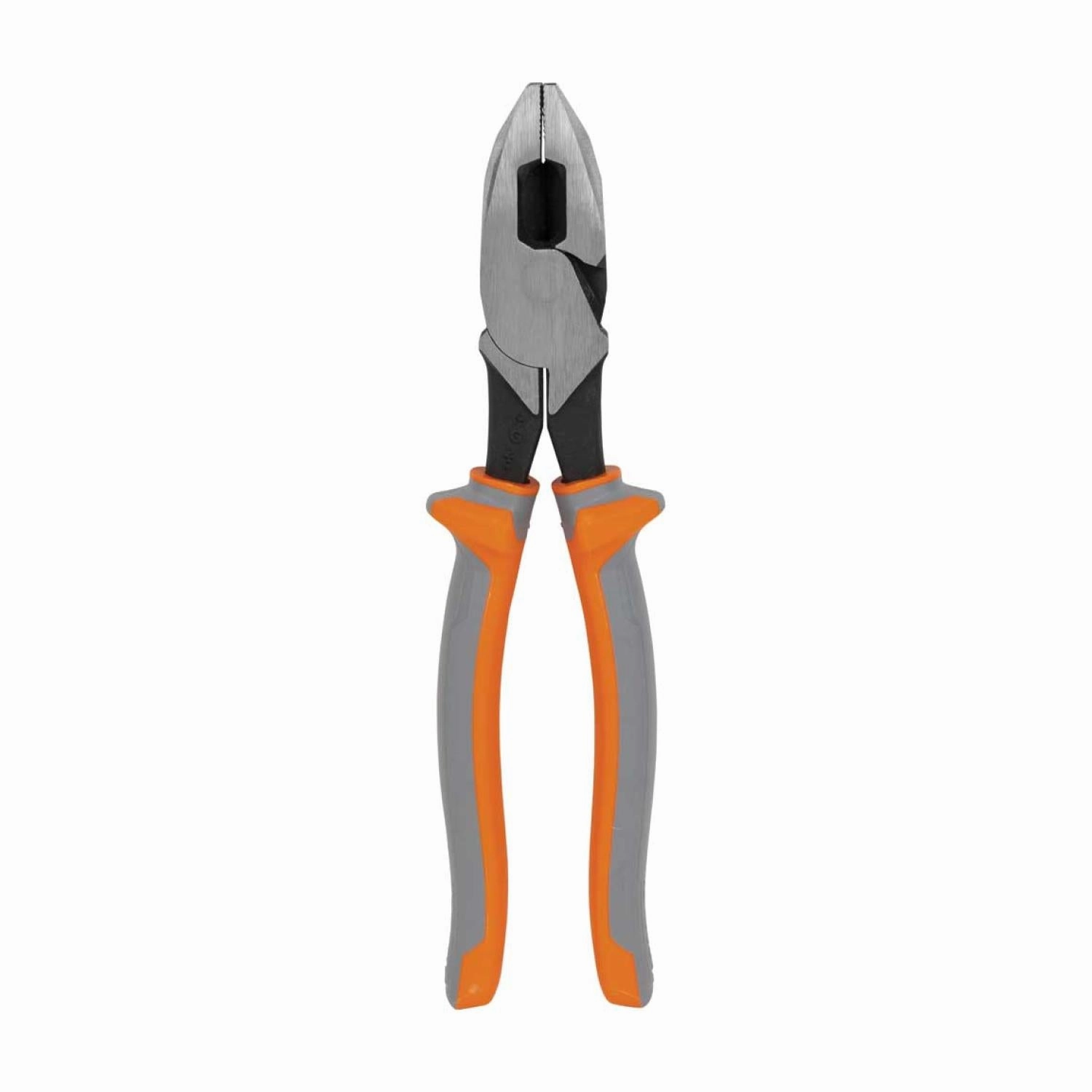

2139NERINS Side-Cutters Pliers:
OAL: 9.5'' (24.1 cm)
Jaw Capacity: 1.375'' (3.5 cm)
Jaw Thickness: 0.62'' (1.6 cm)
Jaw Length: 1.91'' (4.9 cm)
Jaw Width: 1.25'' (3.2 cm)

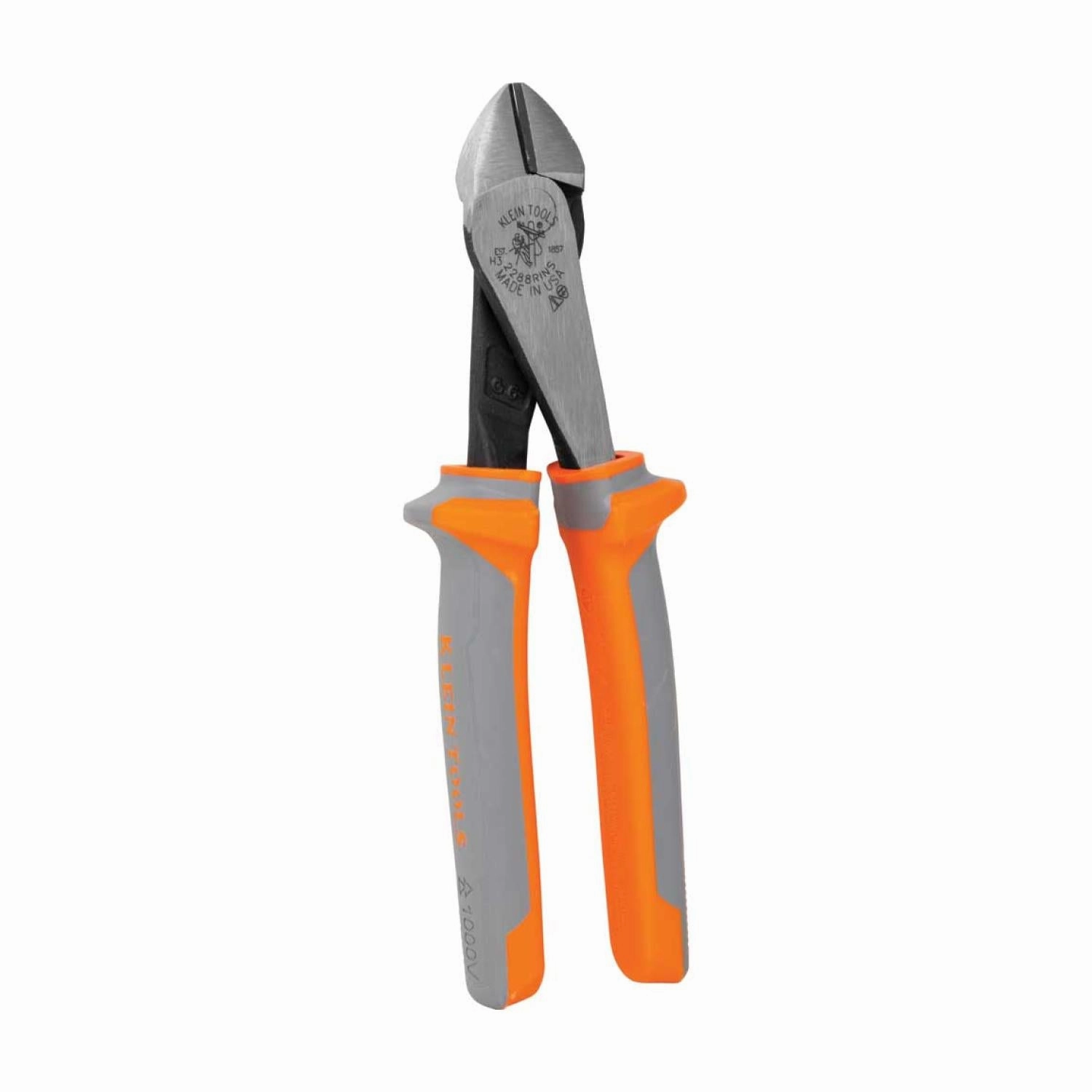

2288RINS Diagonal Cutting Pliers:
OAL: 8.25'' (21 cm)
Knife Length: 0.8'' (2 cm)
Jaw Capacity: 1.019'' (3 cm)
Jaw Thickness: 0.46'' (1.2 cm)
Jaw Length: 0.78'' (2 cm)
Jaw Width: 1.25'' (3.2 cm)
OAL: 7.7'' (19.5 cm)
Jaw Capacity: 0.75'' (1.9 cm)
Jaw Size: 0.25'' (0.6 cm)
Strips and Cuts: 10-18 AWG Solid, 12-20 AWG Stranded
Screw Shearing: Yes; 6-32, 8-32
Wire Gauge: 10-18 AWG Solid; 12-20 AWG Stranded
2038RINS Long Nose Side-Cutters:
OAL: 8.63'' (21.9 cm)
Point Diameter: 0.125'' (0.32 cm)
Jaw Capacity: 2.36'' (6 cm)
Jaw Thickness: 0.5'' (1.3 cm)
Jaw Length: 2.32'' (5.9 cm)
Jaw Width: 1.02'' (2.6 cm)
2139NERINS Side-Cutters Pliers:
OAL: 9.5'' (24.1 cm)
Jaw Capacity: 1.375'' (3.5 cm)
Jaw Thickness: 0.62'' (1.6 cm)
Jaw Length: 1.91'' (4.9 cm)
Jaw Width: 1.25'' (3.2 cm)
2288RINS Diagonal Cutting Pliers:
OAL: 8.25'' (21 cm)
Knife Length: 0.8'' (2 cm)
Jaw Capacity: 1.019'' (3 cm)
Jaw Thickness: 0.46'' (1.2 cm)
Jaw Length: 0.78'' (2 cm)
Jaw Width: 1.25'' (3.2 cm)
Grip Type
Comfort Grip
Pliers Type
Wire Stripper / Long Nose / Side Cutters / Diagonal
Features
Diagonal Cutting Pliers are individually tested to exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and clearly marked with the official 1000V rating symbol
Thick multi-layer grip design provides protection against electric shock
Induction hardened cutting knives for long life
High-leverage design. Rivet is closer to the cutting edge for 36-Percent greater cutting power than other plier designs
Made in the USA
Integral guards help prevent hand contact with conductive parts
Hot-riveted joint for smooth action and no handle wobble
Made of forged steel for maximum durability
Thick multi-layer grip design provides protection against electric shock
Induction hardened cutting knives for long life
High-leverage design. Rivet is closer to the cutting edge for 36-Percent greater cutting power than other plier designs
Made in the USA
Integral guards help prevent hand contact with conductive parts
Hot-riveted joint for smooth action and no handle wobble
Made of forged steel for maximum durability
