General Information
Brand
Hazet
Part Number
4904/6
Product Type
Universal inside spring vice set
Number of Pieces
6

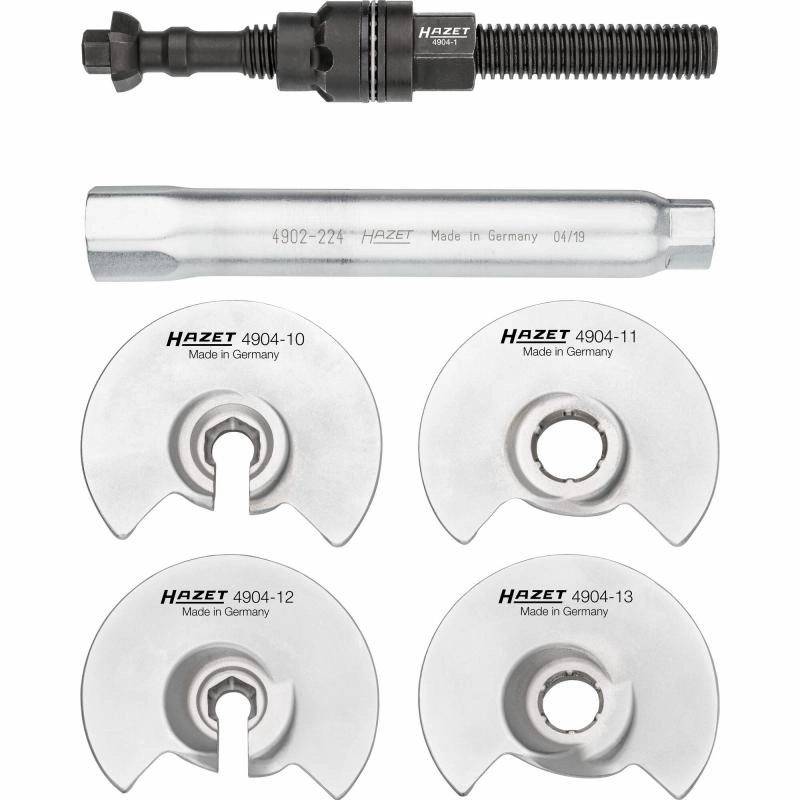

What's Included
1 inside spring vice 4904-1
1 tensioning jaw 4904-10 span width 64 115 mm
1 tensioning jaw 4904-11 span width 64 115 mm
1 tensioning jaw 4904-12 span width 79.5 133 mm
1 tensioning jaw 4904-13 span width 79.5 133 mm
1 tubular box wrench 4902-224 s 24 mm
Plastic box
Soft foam insert
1 tensioning jaw 4904-10 span width 64 115 mm
1 tensioning jaw 4904-11 span width 64 115 mm
1 tensioning jaw 4904-12 span width 79.5 133 mm
1 tensioning jaw 4904-13 span width 79.5 133 mm
1 tubular box wrench 4902-224 s 24 mm
Plastic box
Soft foam insert
Packaging
Retail
Country of Origin
Germany
UPC
4000896238897
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
3.21 kg
7.08 lb
Details
Features
Universal application on almost all passenger cars
Anti-rotation device for lower tensioning jaws integrated in the base component reduces the outer diameter to only 32 mm thanks to compact design
Pendulum hexagonal head for equal force distribution with integrated anti-rotation protection for upper tensioning jaws
One-sided counterholder for the spindle made possible by hexagon on top, e.g. with combination wrench HAZET 600 N-13
Removal and installation of springs with small coil spacing, e.g. for the MINI Cooper S (third generation) VW Passat (B8)
Extension of the span to 120 mm and an increase of the maximum load for increasing vehicle weights (electric and hybrid vehicles), for safe working up to 31,000 N Tested with at least four-fold safety against breakage (GS mark of tested safety)

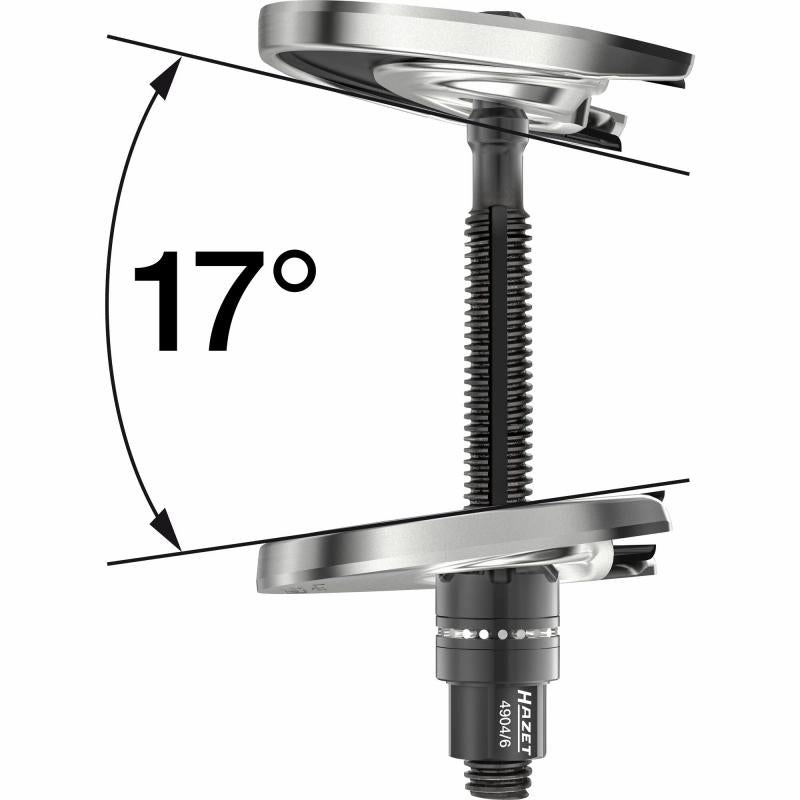

17 angular movement of the tensioning jaws now ensures removal of C-shaped (bent) springs, e.g. on the AUDI A4 (B9) VW Golf 7
Internal and external guidance of the tensioning jaws prevents the spring from sliding out
All tensioning jaws included, reusable, replaceable plastic protective pads

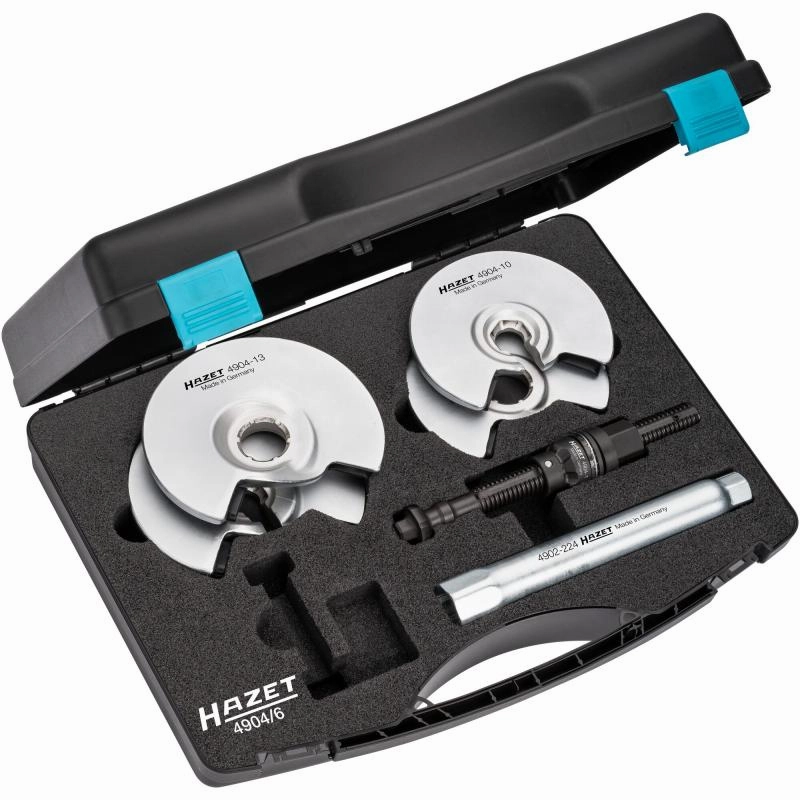

L-Boxx 102 with soft foam insert and operating instructions
Easy handling for just one user
Eliminates time-consuming work associated with most spring removal:
Removal of axle parts unnecessary
Axle alignment no longer necessary
Removal and installation possible in just a few minutes on each side
Conclusion: Compact HAZET design enables spring replacement on many vehicles with remarkable time savings!
Anti-rotation device for lower tensioning jaws integrated in the base component reduces the outer diameter to only 32 mm thanks to compact design
Pendulum hexagonal head for equal force distribution with integrated anti-rotation protection for upper tensioning jaws
One-sided counterholder for the spindle made possible by hexagon on top, e.g. with combination wrench HAZET 600 N-13
Removal and installation of springs with small coil spacing, e.g. for the MINI Cooper S (third generation) VW Passat (B8)
Extension of the span to 120 mm and an increase of the maximum load for increasing vehicle weights (electric and hybrid vehicles), for safe working up to 31,000 N Tested with at least four-fold safety against breakage (GS mark of tested safety)
17 angular movement of the tensioning jaws now ensures removal of C-shaped (bent) springs, e.g. on the AUDI A4 (B9) VW Golf 7
Internal and external guidance of the tensioning jaws prevents the spring from sliding out
All tensioning jaws included, reusable, replaceable plastic protective pads
L-Boxx 102 with soft foam insert and operating instructions
Easy handling for just one user
Eliminates time-consuming work associated with most spring removal:
Removal of axle parts unnecessary
Axle alignment no longer necessary
Removal and installation possible in just a few minutes on each side
Conclusion: Compact HAZET design enables spring replacement on many vehicles with remarkable time savings!
